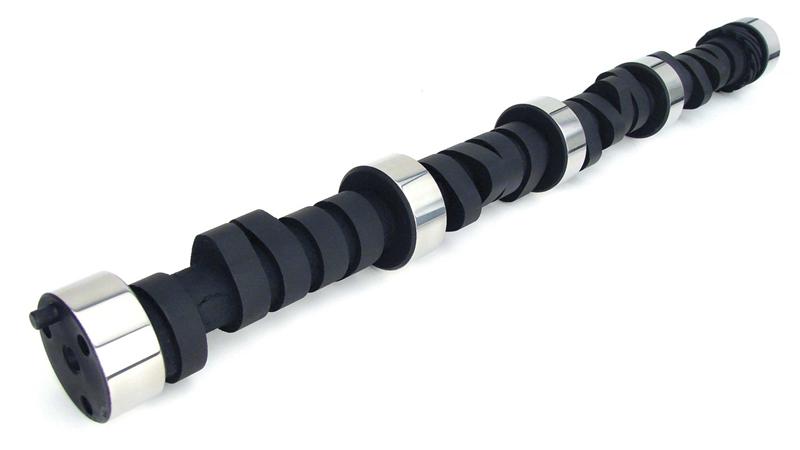

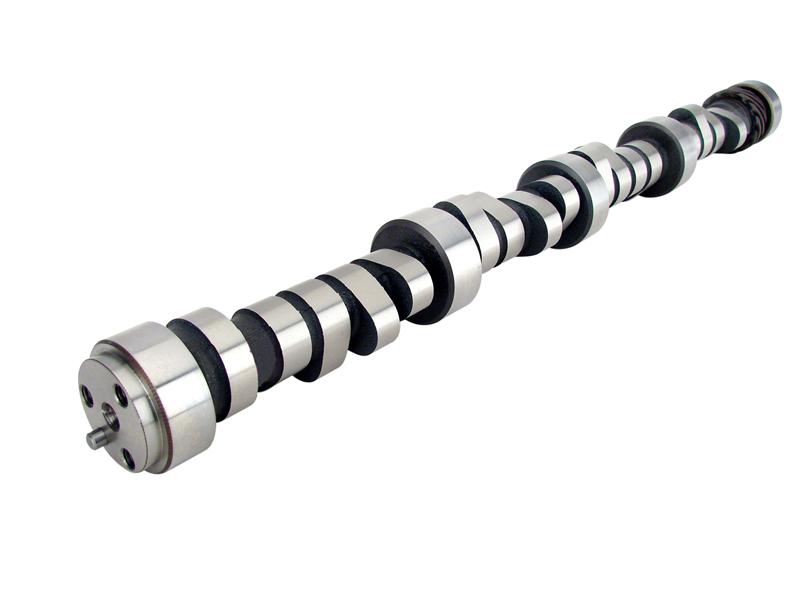

COMP Cams Camshaft CS XE250H-10

COMP Cams Camshaft CS XE250H-10

$293.95
Part no. 12-230-2 In stock
Special order In stock with our distributor. Usually ships in a few business days, and we email tracking as soon as it leaves.

Your vehicle

Year, make and model. Our techs check fitment against it before the order ships.

excellent all around performance in street carbureted applications. Important Considerations: Works best with COMP Cams roller rockers and matched valve springs. Requires other performance parts (intake manifold, headers, etc.) for best performance. Camshaft Part #12-230-2 Grind #XE250H-10. Duration...

Full details and fitment

The details

About this part

excellent all around performance in street carbureted applications. Important Considerations: Works best with COMP Cams roller rockers and matched valve springs. Requires other performance parts (intake manifold, headers, etc.) for best performance. Camshaft Part #12-230-2 Grind #XE250H-10. Duration @ 0.006": 250 / 260deg. Duration @ 0.050": 206 / 212deg. Max Lift w/ 1.5RR: .432" / .444". Lobe Separation: 110deg. Lobe ID#'s: 5440 / 5207. Intake Centerline: 106deg. Engine Type: Chevrolet 350 Small Block. Bore: 4.040" Stroke: 3.480" Displacement: 356ci. Compression: 9.25:1 Heads: Dart S/R Intake: Edelbrock Performer. Carburetor: Holley #3310 Vac. Sec. Exhaust: 1 5/8" Headers. Max Torque: 417 ft/lbs @ 3700 RPM. Max Power: 333 HP @ 4700 RPM. Manifold Vacuum: 19.5" Hg @ 800 RPM & 21" Hg @ 1000 RPM w/ no load.
