  • COMP Cams Camshaft CS XE268H-10
  • Photo - Primary

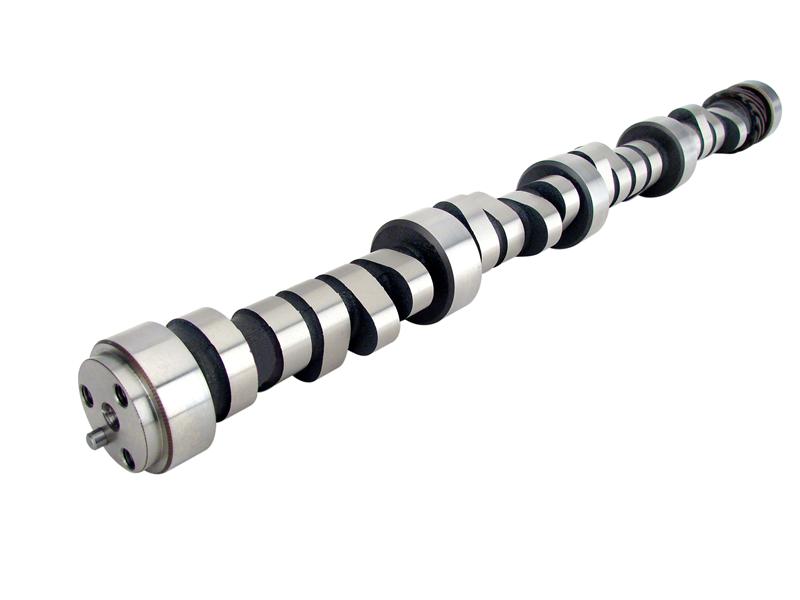

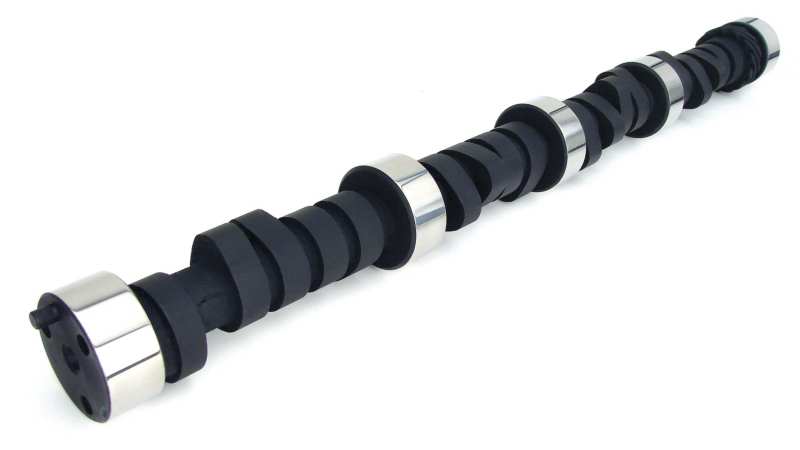

COMP Cams Camshaft CS XE268H-10

COMP Cams Camshaft CS XE268H-10

$293.95
Part no. 12-242-2
Special order Not in stock at our distributor. Lead times vary and can run several weeks. Contact us for an ETA before ordering.

Your vehicle

Year, make and model. Our techs check fitment against it before the order ships.

excellent all around performance in street carbureted applications. Important Considerations: Works best with COMP Cams roller rockers and matched valve springs. Requires other performance parts (intake manifold, headers, etc.) for best performance. Camshaft Part #12-242-2 Designation: XE268H-10. Duration...

Full details and fitment

The details

About this part

excellent all around performance in street carbureted applications. Important Considerations: Works best with COMP Cams roller rockers and matched valve springs. Requires other performance parts (intake manifold, headers, etc.) for best performance. Camshaft Part #12-242-2 Designation: XE268H-10. Duration @ 0.006": 268 / 280deg. Duration @ 0.050": 224 / 230deg. Max Lift w/ 1.5RR: .477" / .480" Lobe Separation: 110deg. Lobe ID#'s: 5443 / 5203. Intake Centerline: 106deg. Engine Type: Chevrolet 350 Small Block Bore: 4.040" Stroke: 3.480" Displacement: 356ci. Compression: 9.25:1 Heads: Dart S/R Intake: Edelbrock Performer. Carburetor: Holley #3310 Vac. Sec. Exhaust: 1 5/8" Headers. Max Torque: 413 ft/lbs @ 3800 RPM. Max Power: 342 HP @ 5000 RPM. Manifold Vacuum:15.5" Hg @ 800 RPM & 17" Hg @ 1000 RPM w/ no load.
