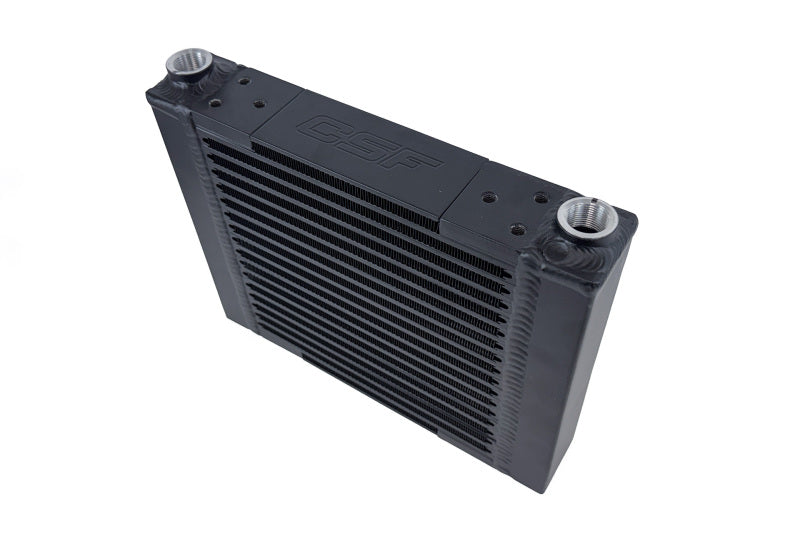

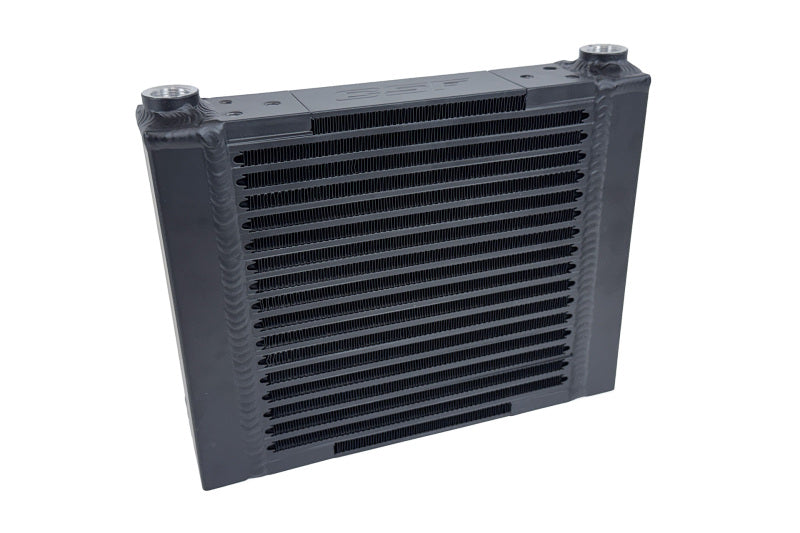

CSF Universal Large Single-Pass Oil Cooler - M22 x 1.5 - 12in L x 9.33in H x 2.16in W
CSF

CSF Universal Large Single-Pass Oil Cooler - M22 x 1.5 - 12in L x 9.33in H x 2.16in W

$499.00
Part no. 8371 In stock

Your vehicle

Year, make and model. Our techs check fitment against it before the order ships.

CSF oil coolers are much more robust, durable, and can withstand a higher peak burst rate than common brazed plate-type/stacked designs. This allows the cooler to be mounted in areas that might get high debris (front fascia, diff...

Full details and fitment

The details

About this part

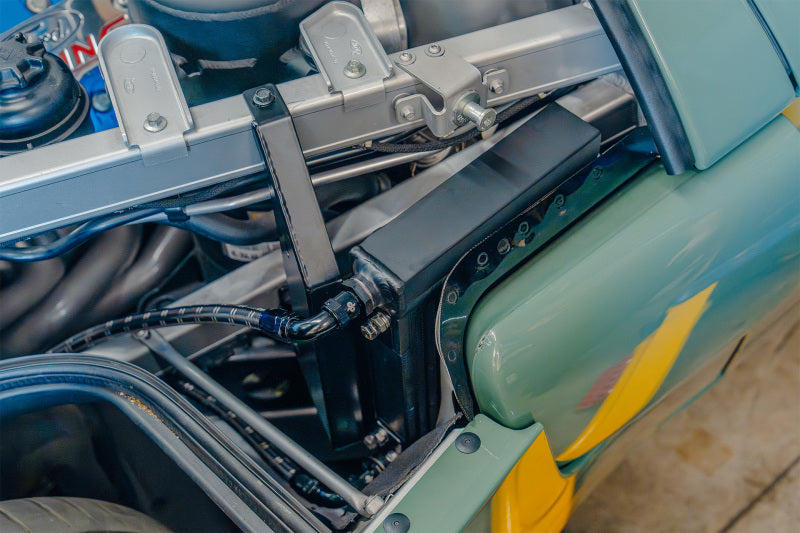

CSF oil coolers are much more robust, durable, and can withstand a higher peak burst rate than common brazed plate-type/stacked designs. This allows the cooler to be mounted in areas that might get high debris (front fascia, diff cooler, side vents, etc). When using a conventional oil cooler, the type of mounting locations are often not considered due to the risk of damage. The CSF oil cooler is designed to withstand a tremendous amount of vibration and debris. You can even stand on it!

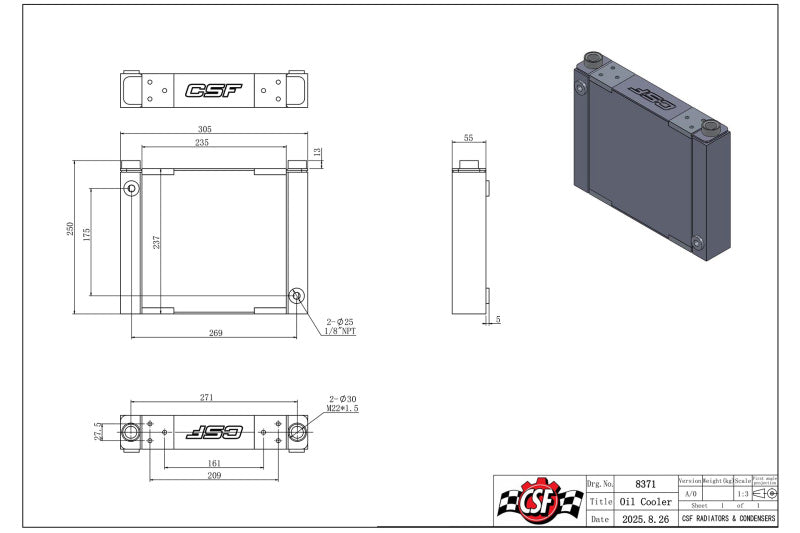

  • Overall Dimensions (including fitting bosses): 12.0" L x 9.85" H x 2.36" W (305mm x 250mm x 60mm)
  • Satin Black Finish for Extreme Protection Against Corrosion and Debris
  • Core Dimensions: 9.25" L x 9.33" H x 2.16" W (235mm x 237mm x 55mm)

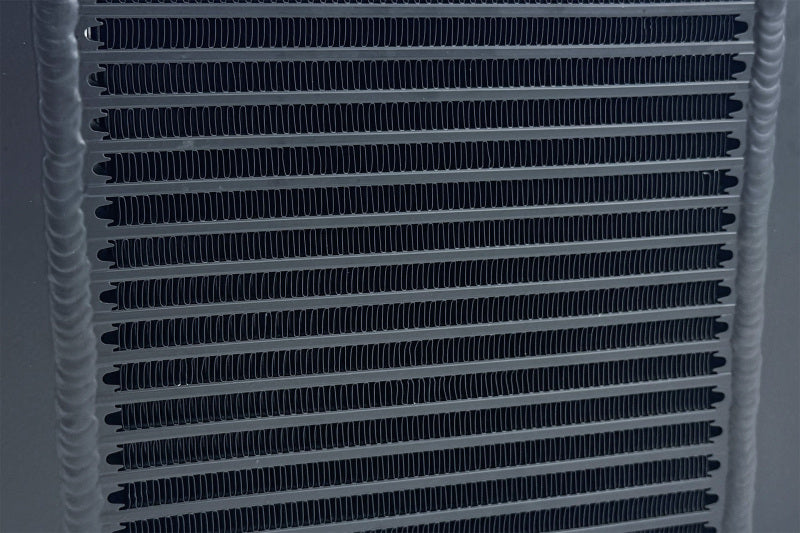

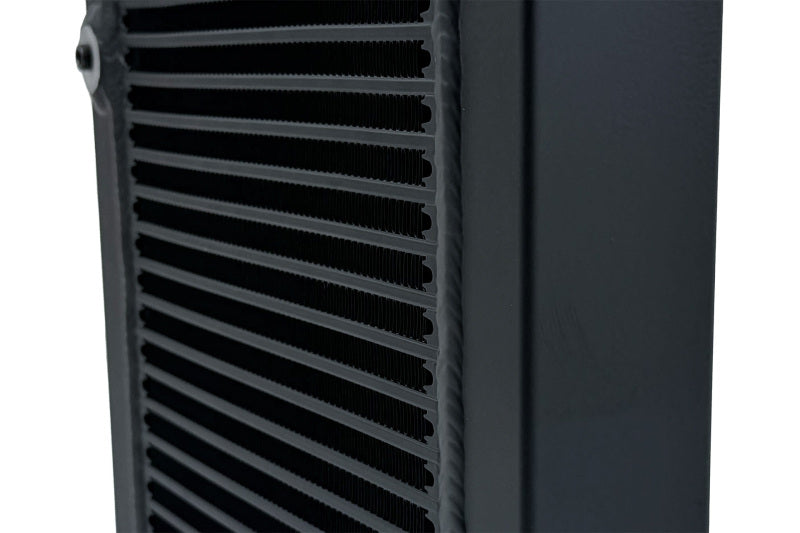

  • "Aero-Flow" Bar Design for Lightweight, Strength, and Maximum Flow

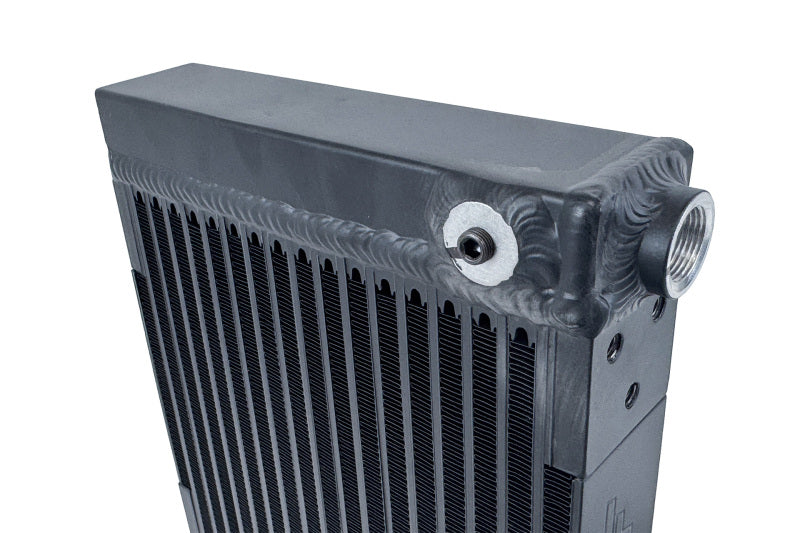

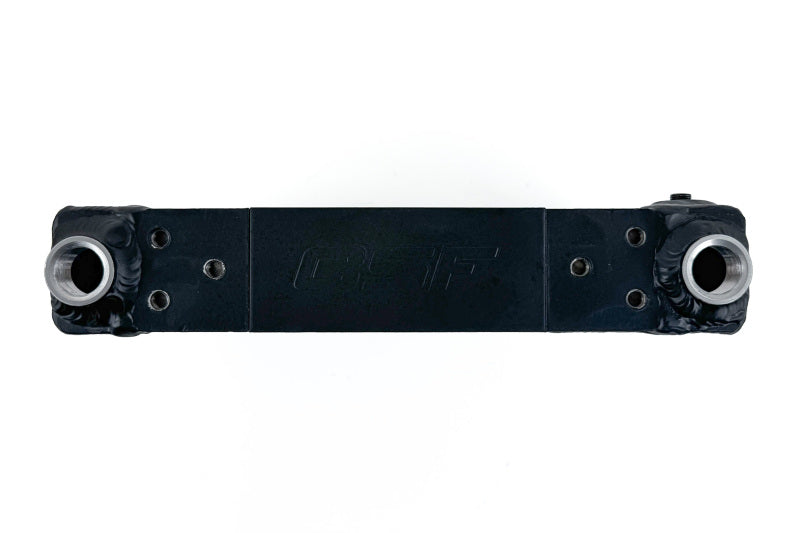

  • Two 1/8 NPT Ports on each tank for bleeding or temperature sensors
  • High Efficiency & Rugged Durability Bar/Plate Design

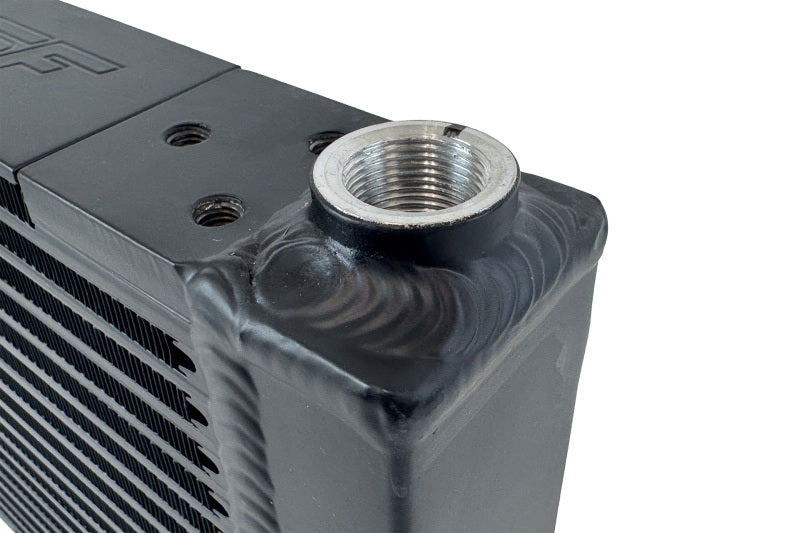

  • M22 x 1.5 Inlet/Outlet Connections
  • Fluid Capacity: 1.5L (1.6 qt)
  • Pressure Tested at 120psi
  • 2-Year Limited Warranty
