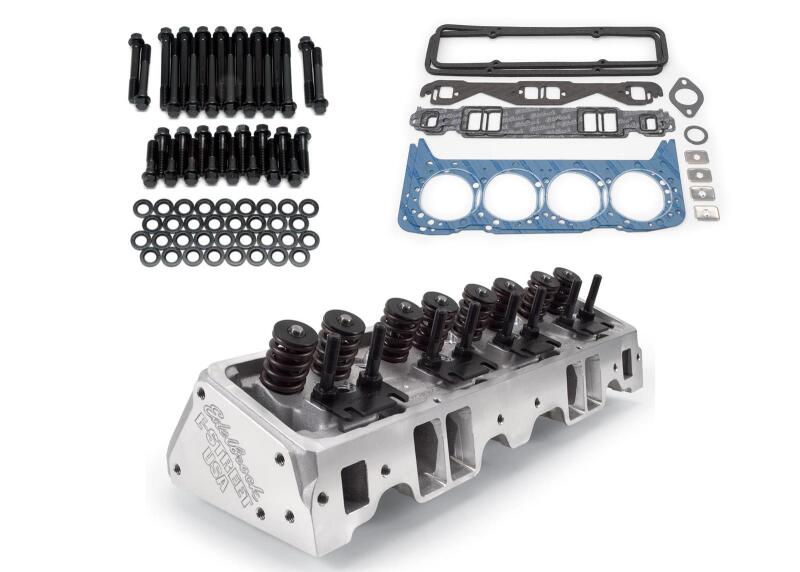

Edelbrock Chevy SB 262-400 E-Street Cylinder Heads - Hydraulic Flat Tappet w/ Install kit
1/2
  • Edelbrock Chevy SB 262-400 E-Street Cylinder Heads - Hydraulic Flat Tappet w/ Install kit
  • Edelbrock Chevy SB 262-400 E-Street Cylinder Heads - Hydraulic Flat Tappet w/ Install kit
Edelbrock Chevy SB 262-400 E-Street Cylinder Heads - Hydraulic Flat Tappet w/ Install kit

Edelbrock Chevy SB 262-400 E-Street Cylinder Heads - Hydraulic Flat Tappet w/ Install kit

$1,536.95
Part no. 2240
Special order Not in stock at our distributor. Lead times vary and can run several weeks. Contact us for an ETA before ordering.

Your vehicle

Year, make and model. Our techs check fitment against it before the order ships.

Cylinder Head Specifications: Combustion chamber volume: 70cc / 64cc; Intake runner volume: 185cc; Exhaust runner volume: 60cc; Intake valve diameter: 2.02"; Exhaust valve diameter: 1.60"; Valve stem diameter: 11/32"; Valve guides: Manganese bronze; Deck thickness: 9/16"; Valve spring...

Full details and fitment

The details

About this part

Cylinder Head Specifications: Combustion chamber volume: 70cc / 64cc; Intake runner volume: 185cc; Exhaust runner volume: 60cc; Intake valve diameter: 2.02"; Exhaust valve diameter: 1.60"; Valve stem diameter: 11/32"; Valve guides: Manganese bronze; Deck thickness: 9/16"; Valve spring diameter: 1.460"; Valve spring maximum lift: .550"; Rocker stud: 3/8" with guide plate; Guideplate: Hardended steel; Pushrod diameter: 5/16"; Valve angle: 23°; Exhaust port location: Stock; Spark plug fitment: 14mm x 3/4 reach, gasket seat * Use with Hydraulic Flat Tappet Camshafts .550" max lift. (NOT Compatible with Hydraulic Roller Camshafts) Recommended spark plugs are Champion RC12YC or equivalent 14mm x 3/4" reach with flat gasket seat. Requires hardened pushrods. Not legal for sale or use on pollution controlled motor vehicles.
