Edelbrock V/S Perf Chev 396-454 Spring Kit

Edelbrock V/S Perf Chev 396-454 Spring Kit

$280.95
Part no. 5895
Special order Not in stock at our distributor. Lead times vary and can run several weeks. Contact us for an ETA before ordering.

Your vehicle

Year, make and model. Our techs check fitment against it before the order ships.

Edelbrock part #5895 Sure Seat Valve Spring Kit is designed for Big-Block Chevy 396-402-427-454 V8 engines with O.E Cast Iron Heads. Made of highest quality spring wire and precision wound to close tolerances. This Sure Seat Valve Spring...

Full details and fitment

The details

About this part

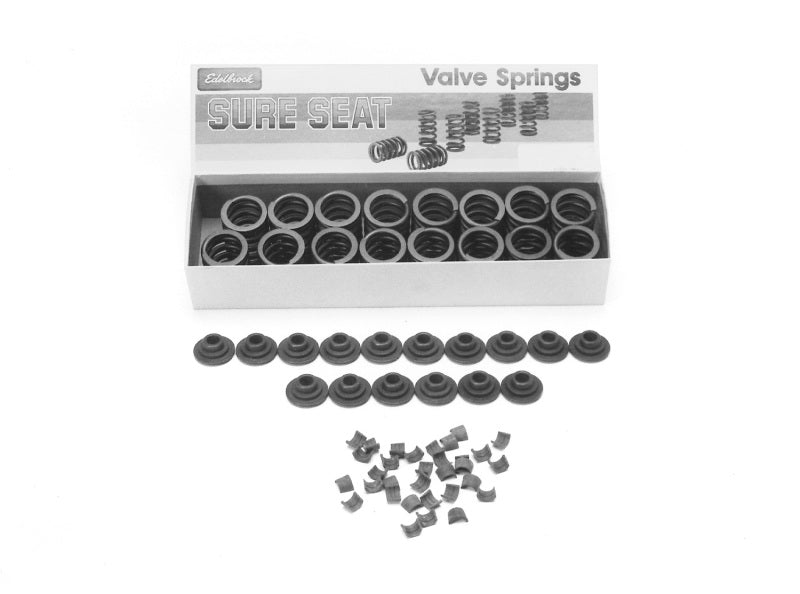

Edelbrock part #5895 Sure Seat Valve Spring Kit is designed for Big-Block Chevy 396-402-427-454 V8 engines with O.E Cast Iron Heads. Made of highest quality spring wire and precision wound to close tolerances. This Sure Seat Valve Spring set is for use on original equipment heads when installing Edelbrock Performer-Plus camshafts. The valve springs are supplied with retainers and lock kit. For camshaft warranty compliance, use only the springs recommended by Edelbrock for each camshaft application. Set of 16. Valve Spring Specifications: Type: Non-Rotator Seat Pressure: 90 lbs. Installed Height: 1.880" Open Pressure: 220 lbs. @ 0.420" Outside Diameter: 1.500" Inside Diameter: 1.082" Coil Bind: 1.340"

Warranty
  • Great Match to Edelbrock Camshaft Kit
