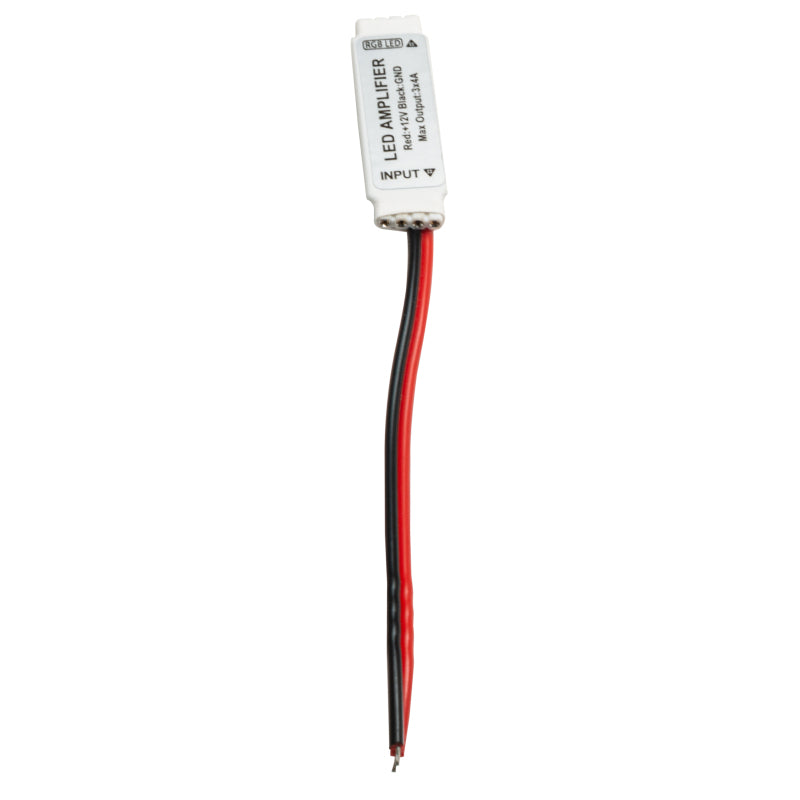

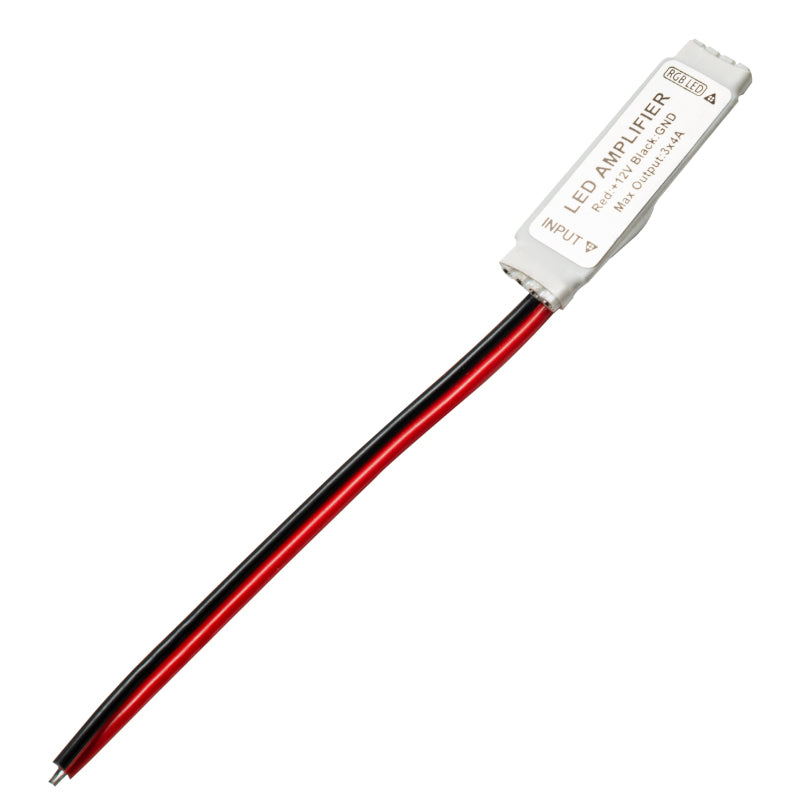

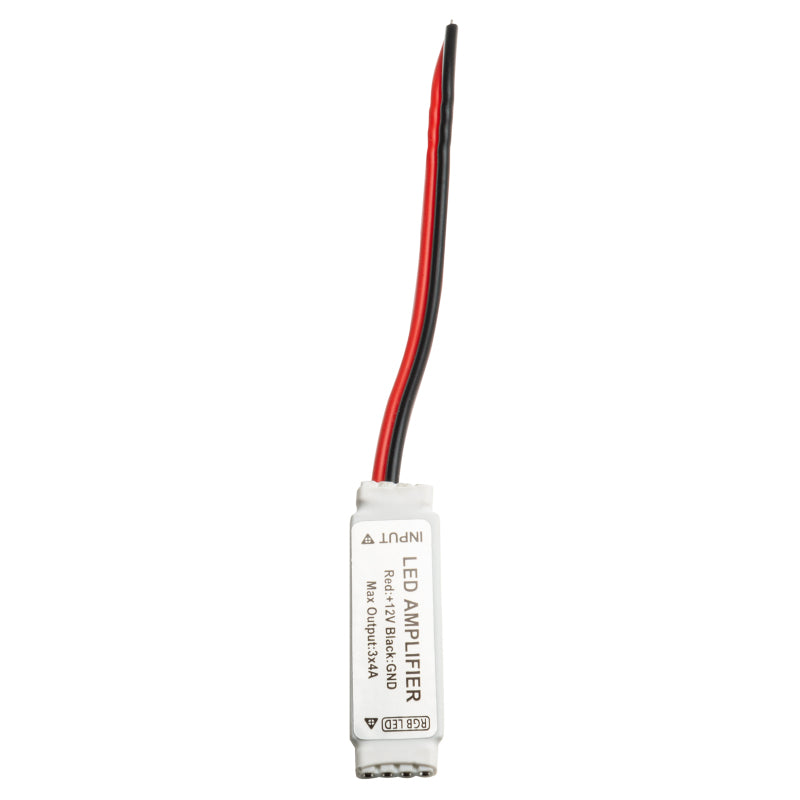

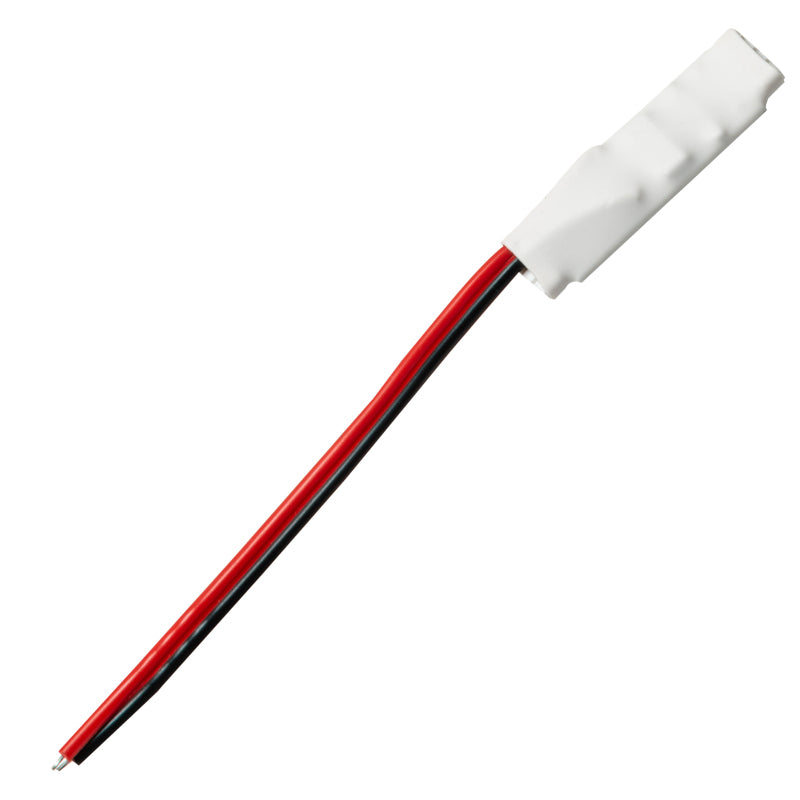

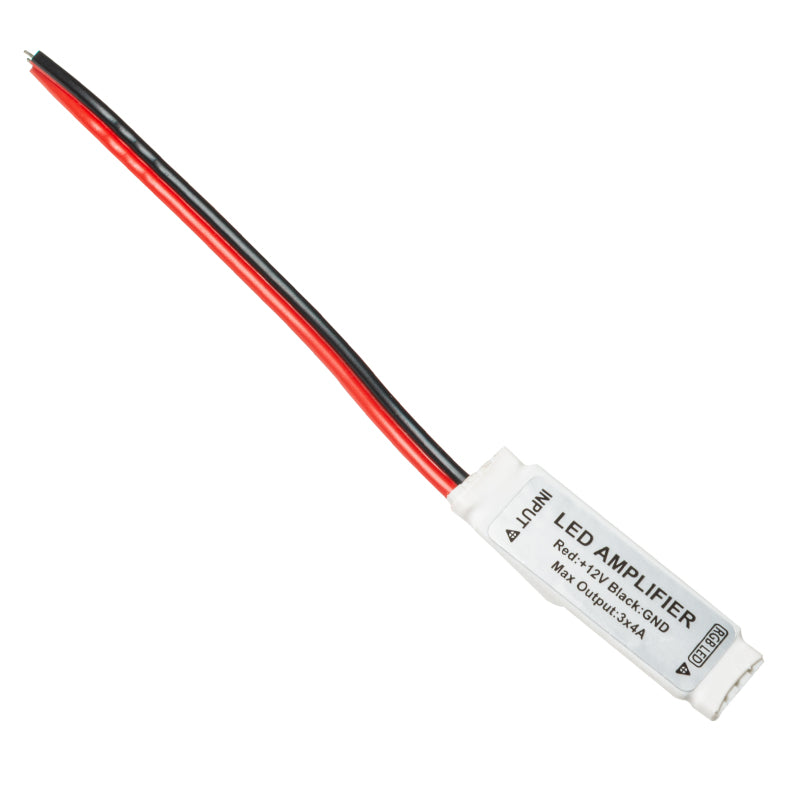

Oracle In-Line LED Amplifier
1/6
  • Oracle In-Line LED Amplifier
  • Oracle In-Line LED Amplifier
  • Oracle In-Line LED Amplifier
  • Oracle In-Line LED Amplifier
  • Oracle In-Line LED Amplifier
  • Oracle In-Line LED Amplifier
Oracle In-Line LED Amplifier

Oracle In-Line LED Amplifier

$19.00
Part no. 1615-504 In stock
Special order In stock with our distributor. Usually ships in a few business days, and we email tracking as soon as it leaves.

Your vehicle

Year, make and model. Our techs check fitment against it before the order ships.

In-line three channel RGB amplifier is used to increase the load capability and extend the signal of any universal RGB controller. This in line amplifier is required if you are exceeding the maximum load capability of any universal...

Full details and fitment

The details

About this part

In-line three channel RGB amplifier is used to increase the load capability and extend the signal of any universal RGB controller. This in line amplifier is required if you are exceeding the maximum load capability of any universal RGB controller. 2 x 4-pin RGB pigtail connectors included. With supplied RGB pigtail connectors, bridge 2 segments of LED RGB Strip with the LED amplifier in between. Connect RED and BLACK wires to 12 Volt power source. Product Specifications: - Voltage: 8-16V - Length: 1.6 in - Width: 0.4 in - Height: 0.1 in - Max load current: 12 Amps - Output: 3 channels - Working temperature: -4-140F- Static power consumption: < 1 Watt - Output Power: 144 Watts - RoHS compliant, FCC, CE Certified, cULus Classified - 2 Year Warranty

  • Increases the load capability and extends the signal of any universal RGB controller.
