RockJock Johnny Joint Rod End 2in Narrow Forged 2in X .500in Ball 1in-14 RH Thread Shank
1/2
  • RockJock Johnny Joint Rod End 2in Narrow Forged 2in X .500in Ball 1in-14 RH Thread Shank
  • Photo - Primary
RockJock Johnny Joint Rod End 2in Narrow Forged 2in X .500in Ball 1in-14 RH Thread Shank

RockJock Johnny Joint Rod End 2in Narrow Forged 2in X .500in Ball 1in-14 RH Thread Shank

$70.00
Part no. CE-9112N-12
Special order Not in stock at our distributor. Lead times vary and can run several weeks. Contact us for an ETA before ordering.

Your vehicle

Year, make and model. Our techs check fitment against it before the order ships.

RockJocks narrow forged Johnny Joints for fabricators and suspension system builders offer 40 degrees of unrestricted movement in any direction as compared to 22 degrees on a common heim joint! Johnny Joint rod ends offer cushioning that a...

Full details and fitment

The details

About this part

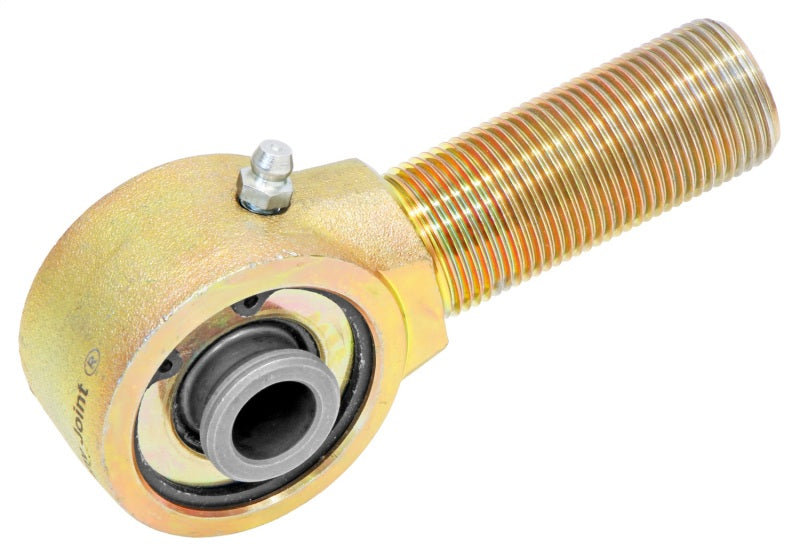

RockJocks narrow forged Johnny Joints for fabricators and suspension system builders offer 40 degrees of unrestricted movement in any direction as compared to 22 degrees on a common heim joint! Johnny Joint rod ends offer cushioning that a heim joint cannot provide via high-density urethane bushing that encases the inner ball. The heat treated center balls are cross-drilled for thru-bolt lubrication and the joint internals are retained with 2 heavy duty, heat treated side washers and a snap ring. This specific joint is a 2 in. diameter, fitted with a zerk fitting for greasing, 2 1/4 in. of 1 in.-14 right hand threads on the shank, and a 2 in. mounting width ball with a .500 in. thru bolt hole. Finished in gold zinc plating.

  • Narrow Forged Johnny Joint®
