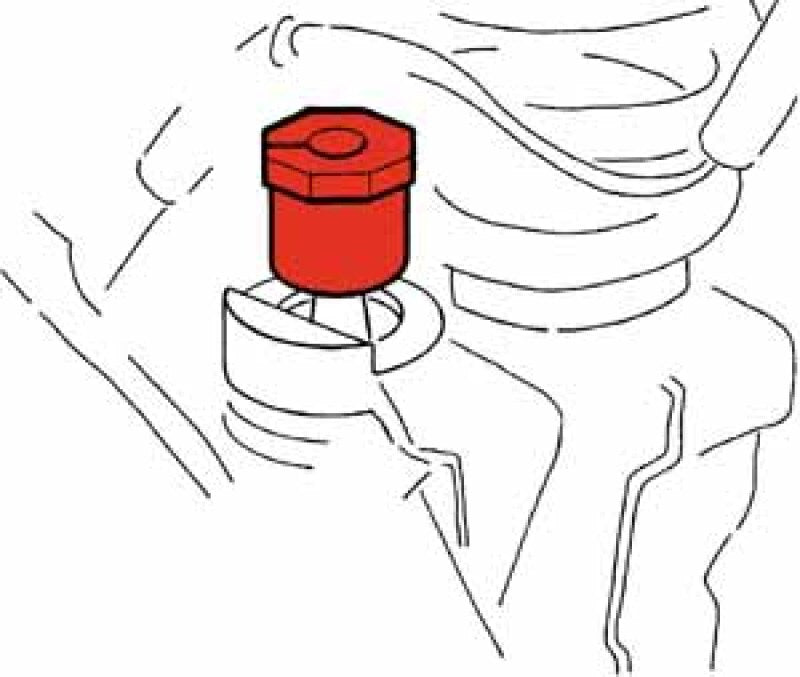

  • Line Art
  • Photo - Primary

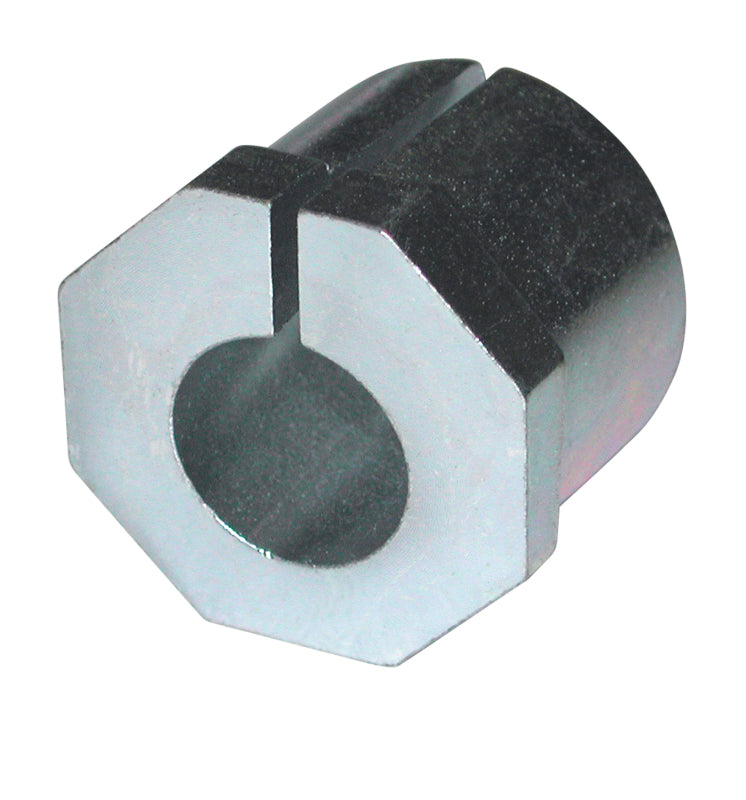

SPC Performance SET (9) 4X4 SLEEVES

SPC Performance SET (9) 4X4 SLEEVES

$197.56
Part no. 23130 In stock
Special order In stock with our distributor. Usually ships in a few business days, and we email tracking as soon as it leaves.

Your vehicle

Year, make and model. Our techs check fitment against it before the order ships.

Change camber,caster or both at the same time with these sleeves. Simply remove the tire, cotter pin and upper ball joint stud nut and break the taper free between the stud and sleeve. Using a sleeve puller, remove...

Full details and fitment

The details

About this part

Change camber,caster or both at the same time with these sleeves. Simply remove the tire, cotter pin and upper ball joint stud nut and break the taper free between the stud and sleeve. Using a sleeve puller, remove the existing sleeve. Install a zero degree sleeve 23139 to determine the change needed ,then install the correct sleeve.To split camber and caster adjustment, rotate sleeve 45deg. Set 23130 contains 1 each: 23131, 23132, 23133, 23134, 23135, 23136, 23137, 23138, 23139 California Residents WARNING

Installation Instructions
  • Front Adjustment Range: Camber/Caster ±0.25° to ±2.00°
  • Front Adjustment Range: Camber/Caster ±0.25˚ to ±2.00˚
  • Easily change caster / camber or both at the same time
  • Clear Zinc coating for corrosion resistance
  • Kit includes an assortment of (9) sleeves
  • Recommended Tools: 77880 - Sleeve Puller
  • Sleeve Kit for popular 4x4 applications
  • Required: 1 per wheel
  • 23138: 2.00˚
  • 23131: 0.25˚
  • 23137: 1.75˚
  • 23136: 1.50˚
  • 23135: 1.25˚
  • 23134: 1.00˚
  • 23133: 0.75˚
  • 23132: 0.50˚
  • 23133: 0.75°
  • 23132: 0.50°
  • 23131: 0.25°
  • 23139: 0.00°
  • 23138: 2.00°
  • 23137: 1.75°
  • 23136: 1.50°
  • 23135: 1.25°
  • 23134: 1.00°
  • 23139: 0.00˚
