About this part
UMI’s 3056 adjustable upper a-arms are designed to excel in Pro-Touring, road race, auto-x and hot street corner carving. The race quality rod ends provide shim-free camber and caster adjustment along with ultimate smooth travel. This arm features a relocated ball joint pad to increase caster and improve stability and steering feel as well as a shortened cross shaft to ball joint distance. We recommend the 3056 arm for all racing applications. Arm must be used with tall spindles when using standard height ball joints. 100% manufactured, tested and raced out of Philipsburg, PA – USA
- Note: Upper a-arm P/N 3056-1 includes standard height ball joints and must be used with tall spindles. In most cases shims are not needed. Shims may still be required on some applications.
- Relocated ball joint pad for increased caster and improved steering feel without excess shims.
- May also work in conjunction with other lower a-arms and/or spindles (contact UMI to discuss).
- Package includes recommended alignment specs and detailed installation instructions.
- Direct bolt-in compatible with factory or UMI lower a-arm and tall spindles.
- Designed, tested, manufactured and raced in Philipsburg, PA-USA.
- 0.120” wall thickness 1.250” diameter DOM tubing.
- 4130 CrMo cross shafts, CNC machined & zinc plated.
- TIG welded for superior strength and clean looks.
- Laser cut ball joint mounting pad.
- Polyurethane bump stops included.
- Travel limiting bolt compatible.

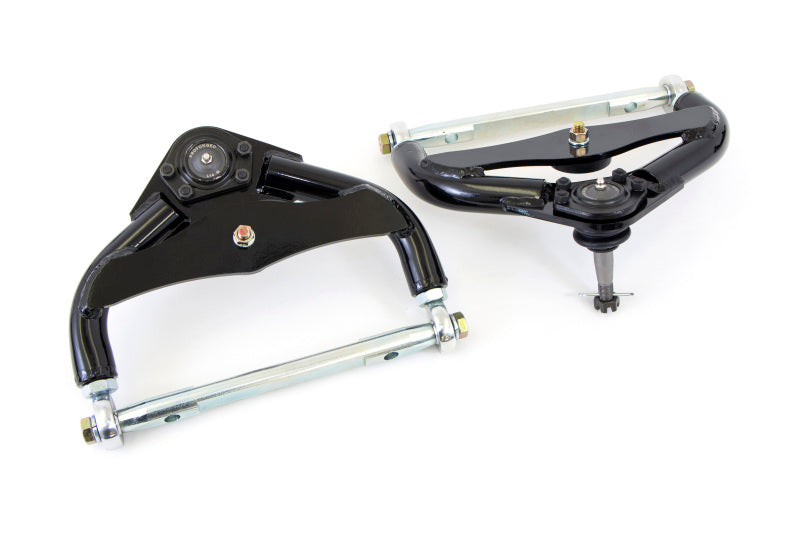

UMI Performance 78-88 G-Body S10 Tubular Front Upper A-Arms Adjustable
$629.99
