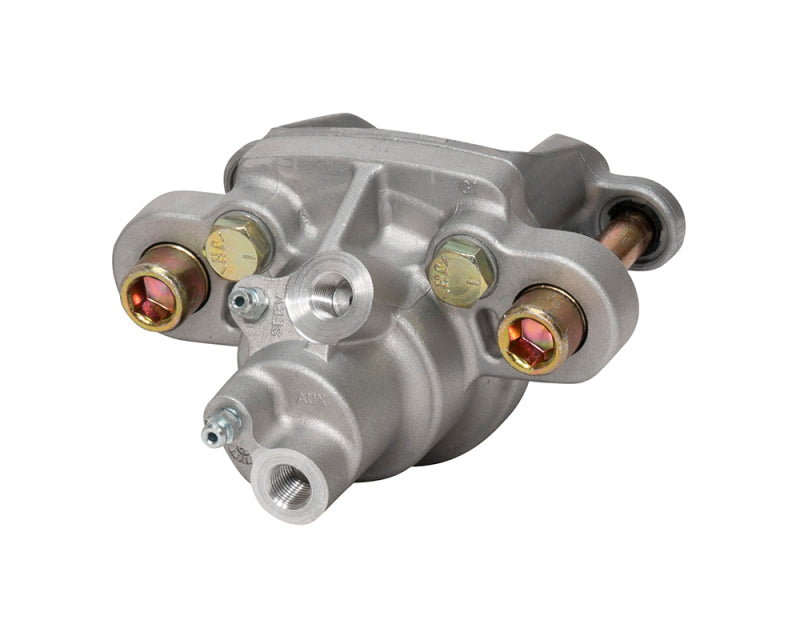

Wilwood caliper DH4 1.50/.94 .19 rotor
  • Wilwood caliper DH4 1.50/.94 .19 rotor
Wilwood caliper DH4 1.50/.94 .19 rotor

Wilwood caliper DH4 1.50/.94 .19 rotor

$117.22 $126.60
Part no. 120-8476 In stock
Special order In stock with our distributor. Usually ships in a few business days, and we email tracking as soon as it leaves.

Your vehicle

Year, make and model. Our techs check fitment against it before the order ships.

Wilwood’s DH4, Dual Hydraulic Calipers offers a step bore piston with a unique primary braking circuit and an additional isolated secondary hydraulic actuated parking brake. Primary piston bore is 1.50” inches, secondary is .94 “diameter and is further...

Full details and fitment

The details

About this part

Wilwood’s DH4, Dual Hydraulic Calipers offers a step bore piston with a unique primary braking circuit and an additional isolated secondary hydraulic actuated parking brake. Primary piston bore is 1.50” inches, secondary is .94 “diameter and is further isolated with dual 10mm x 1.00 fluid inlets. Designed for rotors no larger 9.00” diameter and .19” width. DH4 caliper feature a floating, single piston design with 3.38” wide slide pin mounting. The DH4’s Low squeeze version use a modified seal design to maximize piston retraction in applications where low drag is paramount. Calipers are supplied without brackets. Additional steel brackets are available.
